Z Furring Channel Systems: Technical Specifications And Installation Best Practices For 2026
The term z furring jn3l refers to the standardized industry specification for Z-shaped metal furring channels (often denoted in structural catalogs by proprietary codes like JN3L, representing specific gauge thickness and web depth) used primarily in commercial steel framing and thermal envelope assembly. This article provides a comprehensive overview of the application, structural integrity, and 2026 installation standards for these components.
Understanding the Structural Role of Z Furring Channels
Z furring channels act as a bridge between a structural wall assembly and the finished surface. In modern commercial construction, they are essential for creating space for continuous insulation (CI) while providing a secure mounting surface for exterior cladding or interior finish materials.
The JN3L designation typically refers to a cold-formed steel section with a specific web depth—most commonly 1.5 inches—engineered to maintain structural rigidity while minimizing thermal bridging. By utilizing these channels, contractors can effectively install rigid foam boards or mineral wool insulation without compromising the flatness of the wall assembly.
Technical Performance Metrics for 2026
When selecting furring channels, the following criteria must be evaluated against the 2026 International Building Code (IBC) requirements for wall assemblies:
- Steel Thickness (Gauge): Ensuring the gauge meets local wind load requirements for exterior applications.
- Coating Specifications: Usage of G60 or G90 galvanized coating to prevent long-term corrosion in varying moisture environments.
- Thermal Efficiency: Calculations of the effective R-value of the wall assembly when metal furring is integrated, accounting for the potential for minor thermal bridging at fastener points.
- Fire Resistance Ratings: Compatibility with rated wall assemblies and the fire-blocking requirements of the NFPA 285 standard for exterior wall construction.
Comparative Analysis of Furring Channel Applications
Selecting the correct channel configuration depends heavily on the insulation thickness and the weight of the cladding system. The following table summarizes the performance benchmarks for 2026 projects.
| Feature | Z-Furring (JN3L Spec) | Hat Channel (U-Channel) | Wood Furring Strips |
|---|---|---|---|
| Structural Load | High | Medium | Low |
| Thermal Bridging | Minimized (with thermal break) | Moderate | Minimal |
| Fire Rating | Non-Combustible | Non-Combustible | Combustible |
| Application | Exterior Cladding / CI | Interior Drywall / Soffits | Residential Interior Only |
| Ease of Leveling | High | High | Low |

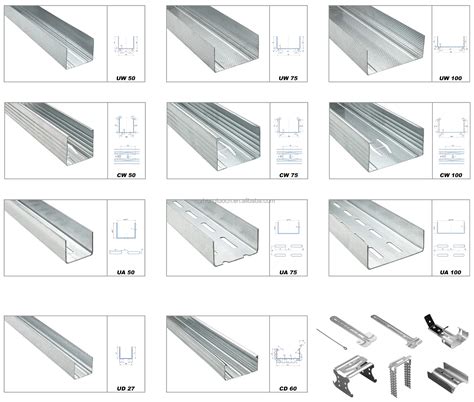

Metal Forming System Drywall Stud Track Angle Bar Ceiling Furring ...
Best Practices for Professional Installation
Proper installation of Z furring systems is paramount to the longevity of the building envelope. In 2026, building inspectors are placing increased scrutiny on the moisture management layers associated with these channels.
- Substrate Preparation: Ensure the primary substrate (CMU, concrete, or steel studs) is structurally sound and free of major protrusions that could affect the alignment of the Z-channels.
- Alignment and Layout: Establish a precise vertical or horizontal grid. For vertical cladding, install Z channels horizontally; for horizontal siding, install them vertically.
- Thermal Break Integration: Apply a high-density thermal break tape or gasket between the wall substrate and the Z furring flange. This step is critical in 2026 energy code compliance to prevent conductive heat loss.
- Fastener Selection: Use heavy-duty, corrosion-resistant self-tapping screws. In high-wind zones, fastener spacing must strictly adhere to the manufacturer’s engineering load tables to prevent cladding pull-out.
- Insulation Fit: Ensure the insulation boards are cut precisely to fit the web depth of the JN3L channel, leaving no gaps that could lead to convective air loops.
Addressing Thermal Bridging and Energy Efficiency
A common concern in 2026 is the impact of metal fasteners and furring on the overall thermal performance of the building. The JN3L channel, when properly paired with high-performance thermal breaks, serves as a superior solution compared to traditional framing methods.
Technical Implementation Note The use of continuous exterior insulation is currently the standard for meeting 2026 Net-Zero energy goals. When installing Z furring, the thickness of the insulation must exceed the depth of the metal channel. By placing the insulation continuously across the structural wall, you effectively wrap the building in a blanket, significantly reducing the energy loss typically associated with metal-to-metal connections.
Troubleshooting Common Framing Failures
Field failures usually stem from improper fastening or poor moisture management. If you notice signs of "ghosting" or thermal bridging (condensation patterns on interior walls), the cause is likely a lack of thermal separation.
- Corrosion: If white rust is present, the galvanized coating has been compromised. Verify that the steel meets ASTM A653 standards.
- Deflection: If the finished cladding appears wavy, the Z-channels were likely installed on an uneven substrate without proper shimming. Always use a laser level to establish a reference plane before securing the channels.
- Structural Pull-out: This occurs when screws penetrate too close to the edge of the substrate. Always maintain the manufacturer’s recommended edge distance, usually at least 1/2 inch from the edge of the structural member.
Frequently Asked Questions
What does the JN3L designation signify in a project bid?
The JN3L code identifies a standardized structural Z-furring profile, typically 1.5 inches in depth and manufactured from specific gauge steel. It is used as a procurement identifier to ensure all materials on a job site meet identical structural and thermal specifications.
Are Z furring channels approved for use in high-rise exteriors?
Yes, provided they are part of an assembly tested under NFPA 285 fire performance standards and meet the local jurisdiction’s wind-load requirements for the building height. You must review the specific project’s engineering certification for compliance.
How do I prevent thermal bridging with metal channels?
You must install a thermal break—such as a continuous gasket, high-density polyethylene shim, or specialized thermal-blocking tape—between the flange of the Z furring and the structural substrate to break the conductive path.
What fasteners should be used for mounting Z furring to concrete?
You should utilize concrete masonry screws or wedge anchors that have been rated for pull-out strength in the specific substrate type. Ensure all fasteners are stainless steel or possess a high-grade exterior coating to prevent galvanic corrosion when in contact with galvanized steel.
Can I install drywall directly over Z furring?
Yes, Z furring is an excellent way to level out uneven interior masonry walls, providing a flat and plumb surface for gypsum board installation in residential and commercial retrofits.
For contractors and facility managers aiming to optimize building envelopes in 2026, selecting the correct furring channel profile is a foundational step. Ensure all materials are procured through authorized distributors who provide mill test reports to verify the steel chemistry and coating thickness, ensuring your project meets current safety and energy performance codes. Contact your structural supply representative today to confirm availability of JN3L specifications for your upcoming 2026 commercial build.
