Complete Guide To U-Haul Tow Hitch Installation In 2026

Navigating the logistics of towing requires precise hardware selection, vehicle compatibility assessments, and professional installation. This guide covers everything you need to know about getting a tow hitch installed through U-Haul in 2026, breaking down structural requirements, wiring needs, class ratings, and financial considerations to ensure your vehicle is safely equipped for the road.

Understanding Tow Hitch Classes and Vehicle Capacity

Before booking an installation, identifying the correct hitch class for your vehicle and towing goals is critical. Tow hitches are categorized by weight ratings, receiver tube sizes, and structural mounting points. Selecting an incorrect class can cause frame damage, transmission strain, or catastrophic separation of your towed load.

• Class 1: Rated for up to 2,000 pounds Gross Trailer Weight (GTW) and 200 pounds Tongue Weight (TW). Typically features a 1-1/4 inch receiver and is designed for compact cars, sedans, and light-duty crossovers carrying bike racks or small cargo trays.
• Class 2: Rated for up to 3,500 pounds GTW and 350 pounds TW. Features a 1-1/4 inch receiver and fits mid-size sedans, crossovers, and small SUVs for lightweight utility trailers.
• Class 3: Rated for up to 6,000 to 8,000 pounds GTW (and up to 12,000 pounds with weight distribution systems) with 600 to 800 pounds TW. Features a standard 2-inch receiver, serving as the industry standard for full-size SUVs, trucks, and heavy crossovers hauling campers, boats, and large utility trailers.

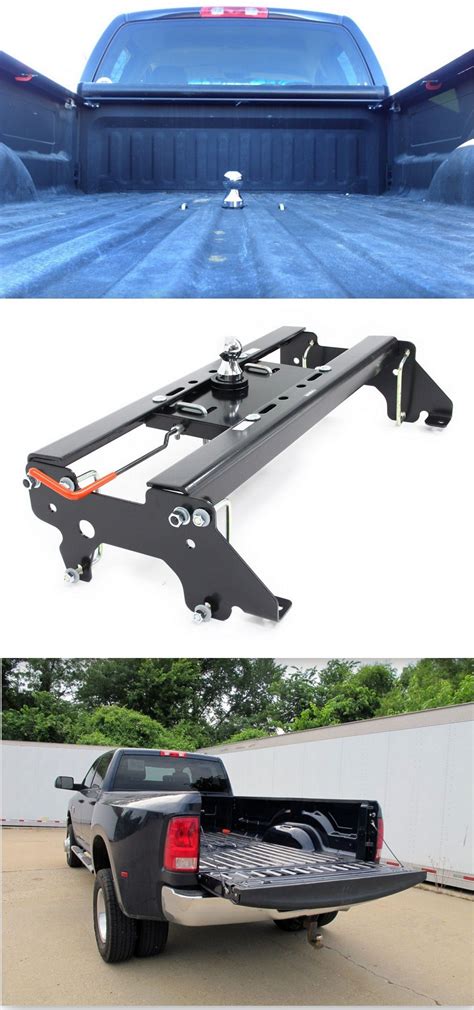

• Class 4 & 5: Rated for 10,000 to 20,000+ pounds GTW with 2-inch or 2-half-inch receivers. Built for heavy-duty trucks (e.g., Ford F-250/350, RAM 2500/3500, Chevrolet Silverado 2500/3500) hauling massive fifth-wheel or gooseneck configurations, though specialized fifth-wheel rails require custom truck-bed integration.

U-Haul Professional Installation vs. DIY Approach

Choosing between professional installation at a local U-Haul center and a do-it-yourself garage project involves weighing labor costs, specialized tools, and structural safety liabilities.

Expert Technical Insight on DIY Challenges

If you choose to install a hitch yourself, be prepared for factory bolt-hole corrosion, especially on vehicles older than three years. Technicians at U-Haul utilize pneumatic tools and industrial thread chasers to clear out accumulated rust, debris, and weld-nut paint overspray from the vehicle frame. Attempting to force a bolt into an un-cleaned frame weld-nut can strip the factory threads, turning a simple bolt-on installation into an expensive frame-repair job.

Step-by-Step U-Haul Tow Hitch Installation Workflow

When you schedule an appointment with U-Haul, the installation follows a rigorous standard operating procedure designed to safeguard your vehicle's structural integrity.

1. Vehicle Pre-Inspection and Weight Verification: The technician reviews your vehicle's Gross Vehicle Weight Rating (GVWR) and Gross Combined Weight Rating (GCWR) listed on the driver-side door jamb placard to confirm safe towing capacity.
2. Exhaust and Heat Shield Lowering: On many modern crossovers and sedans, the exhaust system or thermal heat shields must be temporarily lowered or unbolted to provide clearance for the hitch cross tube.
3. Frame Access and Hardware Fish-Wire Insertion: Technicians use specialized coiled fish-wires to thread carriage bolts and backing plates through internal access holes within hollow vehicle frame rails down to the designated mounting holes.
4. Hitch Positioning and Alignment: Using mechanical jacks or an extra set of hands, the hitch is raised into alignment with the frame mounting points.
5. Torquing to Manufacturer Specifications: Bolts are hand-threaded to prevent cross-threading, then torqued down using calibrated pneumatic torque wrenches to the exact foot-pound specifications mandated by the hitch manufacturer.
6. Custom Wiring Integration: If a lighting package is included, technicians splice, plug, or integrate a custom T-connector harness into your vehicle's tail-light assembly, protecting sensitive body control modules (BCMs) with powered converters.

Essential Towing Electrical Components and Wiring Options

A physical hitch connection is only half the equation; safe towing requires legal and functional trailer lighting. U-Haul technicians install vehicle-specific wiring harnesses to power your trailer's tail lights, brake lights, and turn signals.

• 4-Way Flat Connectors: The standard plug for basic utility trailers, small boat trailers, and lightweight campers. It carries running lights, left/right turn signals, and brake lights.
• 7-Way Round Connectors: Required for heavier travel trailers and equipment haulers equipped with electric trailer brakes. It incorporates 12-volt auxiliary power, reverse lights, and electric brake control integration in addition to standard lighting circuits.
• Powered Converter Modules: Modern vehicles utilize multiplexed or CAN-bus electrical systems that can be damaged by drawing extra power directly from tail-light circuits. U-Haul installs isolated, powered converters that draw direct 12-volt power from the vehicle battery while using low-amperage signals from the tail lights to switch the trailer lights safely.

Safety Warning Regarding Brake Controllers: If you are towing a trailer equipped with heavy electric brakes, a standard 4-way connector is insufficient. You must ensure your installation includes a 7-way blade socket and a compatible proportional electronic brake controller mounted inside the cabin of your tow vehicle.

Frequently Asked Questions About U-Haul Tow Hitch Services

How long does a typical U-Haul tow hitch installation take?

Most standard tow hitch installations take between 1 and 3 hours, depending on whether vehicle wiring and custom bumper trimming are required. It is always recommended to book an appointment in advance to secure the necessary parts and service bay time.

Will getting a hitch installed at U-Haul void my vehicle manufacturer warranty?

No, under the Magnuson-Moss Warranty Act, having aftermarket equipment installed by a professional service provider like U-Haul cannot void your factory vehicle warranty unless the installation directly causes a mechanical failure. U-Haul backs their hitch installations with a lifetime nationwide limited warranty.

Do I need to bring my own hitch and wiring, or does U-Haul supply them?

U-Haul locations stock a massive inventory of custom-fit hitches manufactured by leading brands like Curt and Draw-Tite, alongside proprietary U-Haul branded hardware. You do not need to purchase parts beforehand; the service center will match the correct components to your specific year, make, model, and trim.

Can U-Haul install a tow hitch on any vehicle?

While U-Haul manufactures and stocks custom hitches for thousands of vehicle models, certain sports cars, low-clearance exotic vehicles, and ultra-compact electric cars may lack structural frame points capable of safe towing reinforcement. A quick online vehicle look-up or a call to your local center will confirm compatibility.

What is the difference between a ball mount and a hitch receiver?

The hitch receiver is the square-shaped metal tube permanently bolted to the frame of your vehicle. The ball mount is the removable accessory slide-in bar that holds the trailer ball, allowing you to adjust the drop or rise height to keep your trailer level during transit.

Scheduling Your Service and Next Steps

Securing a reliable towing setup protects your vehicle, your cargo, and fellow motorists on the highway. To get started, visit your local U-Haul center or use their online reservation portal to enter your vehicle identification number (VIN) or license plate details. Ensure you select the correct electrical wiring package if you plan to tow loads requiring active tail lights or electric brakes, and verify your vehicle's payload capacity before hitting the road in 2026.
